NVMe (Non-Volatile Memory Express) and modern SSDs represent the cutting edge of data storage, offering read/write speeds exceeding 7,000 MB/s on PCIe 5.0 models and capacities of 8 TB or more. However, their complexity — due to technologies such as 3D NAND, proprietary controllers, and features like TRIM and wear leveling — makes data recovery a unique challenge. In 2025, techniques have evolved dramatically thanks to advances in software, forensic hardware, and protocols like NVMe 2.3, which improve both security and recovery efficiency. In this article, we explore the most common causes of data loss, the latest innovative techniques, and the best recommended tools — all with a focus on safe and effective methods.
Why Is Recovery on NVMe and SSD Different from Traditional HDDs?
Unlike mechanical hard drives (HDDs) that use magnetic platters, SSDs and NVMe store data in NAND flash memory chips. This brings advantages like higher speed and shock resistance, but also major complications:
• TRIM and Garbage Collection: These commands erase “deleted” data blocks to optimize performance, making recovery much harder if triggered right after data loss.
• Wear Leveling and Over-Provisioning: They distribute wear evenly, hiding data in areas that are inaccessible without specialized tools.
• Proprietary Controllers: Chips from Samsung, WD, etc., encrypt and manage data in a closed manner, often requiring “chip-off” techniques to access the NAND directly.
• Advanced Encryption: Models with TCG Opal or AES-XTS lock data without keys, complicating recovery.
In 2025, 41% of data recovery certifications include modules on 3D NAND and quantum forensics, reflecting the need to adapt to these challenges.
Common Causes of Data Loss in Modern NVMe and SSDs
• Logical: Accidental deletion, formatting, partition corruption, or failed firmware updates (common on NVMe 2.0+).
• Physical: Controller failure, overheating (especially in M.2 NVMe laptops), or NAND cell wear after 3–5 years of heavy use.
• Hybrid: RAID arrays with multiple failed SSDs, or corrupted firmware that reports incorrect capacity.
The good news: in 2025, success rates for logical cases have reached 95% with modern tools, thanks to AI algorithms that reconstruct fragments.

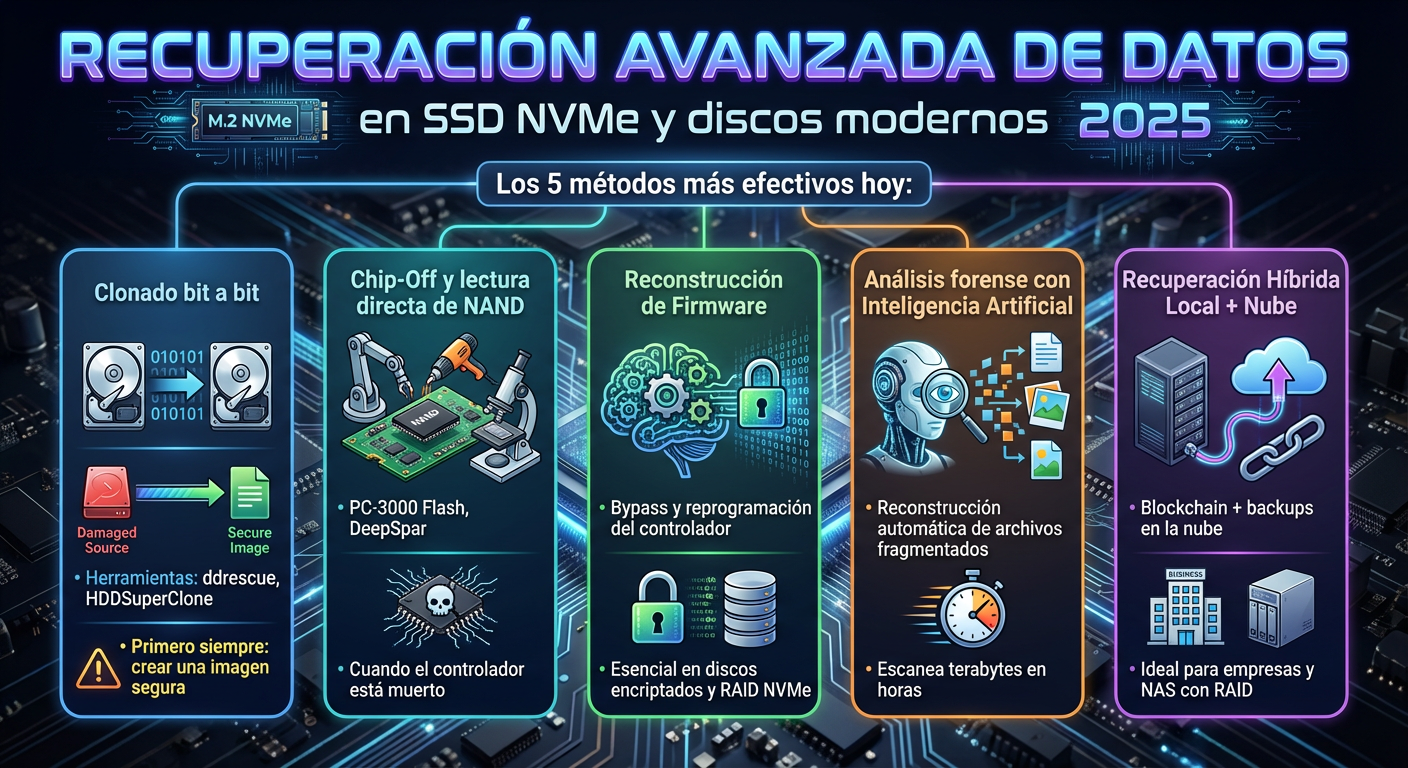

New Advanced Data Recovery Techniques for NVMe and SSD (2024–2025)
1. Bit-for-Bit Cloning and Virtual Imaging
Description: Sector-by-sector copy of the entire SSD/NVMe to a forensic image file using tools like ddrescue, HDDSuperClone, or Atola TaskForce. TRIM is disabled first to prevent the controller from erasing “deleted” data.
Application: Ideal for high-speed, large-capacity (2–8 TB) M.2 NVMe drives. In 2025 many tools already use AI to automatically detect and skip bad sectors.
Main advantages: Reduces additional data loss risk by ~90%. All subsequent analysis is performed on the copy, never the original drive.
Typical cases: Corrupted partitions, RAW drives, or drives prompting for formatting.
2. Chip-Off and Direct NAND Reading
Description: Physical removal of NAND memory chips from the PCB and direct reading with specialized programmers (PC-3000 Flash, DeepSpar NAND Reader, Flash Extractor, etc.). Updated support for 176–236+ layer 3D NAND.
Application: When the controller is dead, burned, or firmware completely blocks access (very common on PCIe 4.0/5.0 NVMe).
Main advantages: The only viable option when the controller is physically damaged. ~70% success rate on physical damage.
Typical cases: SSD/NVMe not detected in BIOS, controller damaged by power surge or drop.
3. Firmware and Controller Reconstruction
Description: Reprogramming or bypassing proprietary firmware using NAND dumps and tools like MRT, PC-3000 Portable, or Flash Extractor. NVMe 2.3 standard includes specific recovery commands for failures.
Application: Encrypted drives (TCG Opal, AES-XTS), NVMe RAID, and drives showing 0 GB capacity or “unknown device.”
Main advantages: Increases success rate by 50–60% on popular models (Samsung 980/990 PRO, WD Black SN850X, Seagate FireCuda 530, etc.).
Typical cases: Drive shown in Windows as “0 bytes” or requiring forced initialization.
4. AI and Machine Learning Forensic Analysis
Description: Advanced algorithms that detect file signatures, reconstruct heavily fragmented MFT/GPT tables, and use homomorphic encryption to work on encrypted data without decrypting it.
Application: QLC and TLC SSDs with extreme wear-leveling (very common in 2024–2025 consumer drives).
Main advantages: Scans multiple terabytes in hours instead of days; >85% accuracy in fragment reconstruction.
Typical cases: Recovery of RAW photos, 4K/8K videos, Office documents, and corrupted databases on gaming laptops and workstations.
5. Recovery in Hybrid Environments (Cloud + Local)
Description: Combining local images with cloud backups, blockchain-based integrity verification, and distributed analysis across nodes.
Application: NAS and servers with multiple NVMe drives in RAID, enterprise environments with mandatory cloud retention policies.
Main advantages: Native end-to-end encryption support, drastic reduction in downtime, and legal forensic traceability.
Typical cases: RAID 0, 5, or 6 with one or more failed NVMe drives in Dell, HP, Synology, or QNAP servers.
Recommended Tools and Software in 2025
• 4DDiG Windows Data Recovery: Leader for NVMe; recovers over 1,000 file types with advanced algorithms (~$50/year).
• EaseUS Data Recovery Wizard Pro: Excellent for corrupted partitions and RAID; supports NVMe up to 8 TB. Includes file repair.
• R-Studio: Powerful for RAID and firmware reconstruction; bootable version automatically disables TRIM. Pro favorite.
• Disk Drill: User-friendly; creates virtual images of M.2 NVMe drives. Free up to 500 MB.
• Donemax Data Recovery: Deep scanning after formatting; Mac/Windows support. High success on QLC SSDs.
• Professional lab tools: PC-3000 for chip-off; services like Recover-SSD.com.
For DIY: Disable TRIM with `fsutil behavior set DisableDeleteNotify 1` (Windows), clone with ddrescue on Linux, then scan.
Best Practices and Prevention
• Immediate action: Stop using the drive as soon as problems appear; never format.
• Backups: Follow the 3-2-1 rule (3 copies, 2 different media, 1 offsite). Use Acronis or encrypted cloud (Google Drive, etc.).
• Monitoring: Use CrystalDiskInfo to watch NAND health and keep temperatures below 70°C on NVMe.
• Updates: Keep firmware current, but always backup first (NVMe 2.3 reduces failures by ~20%).
